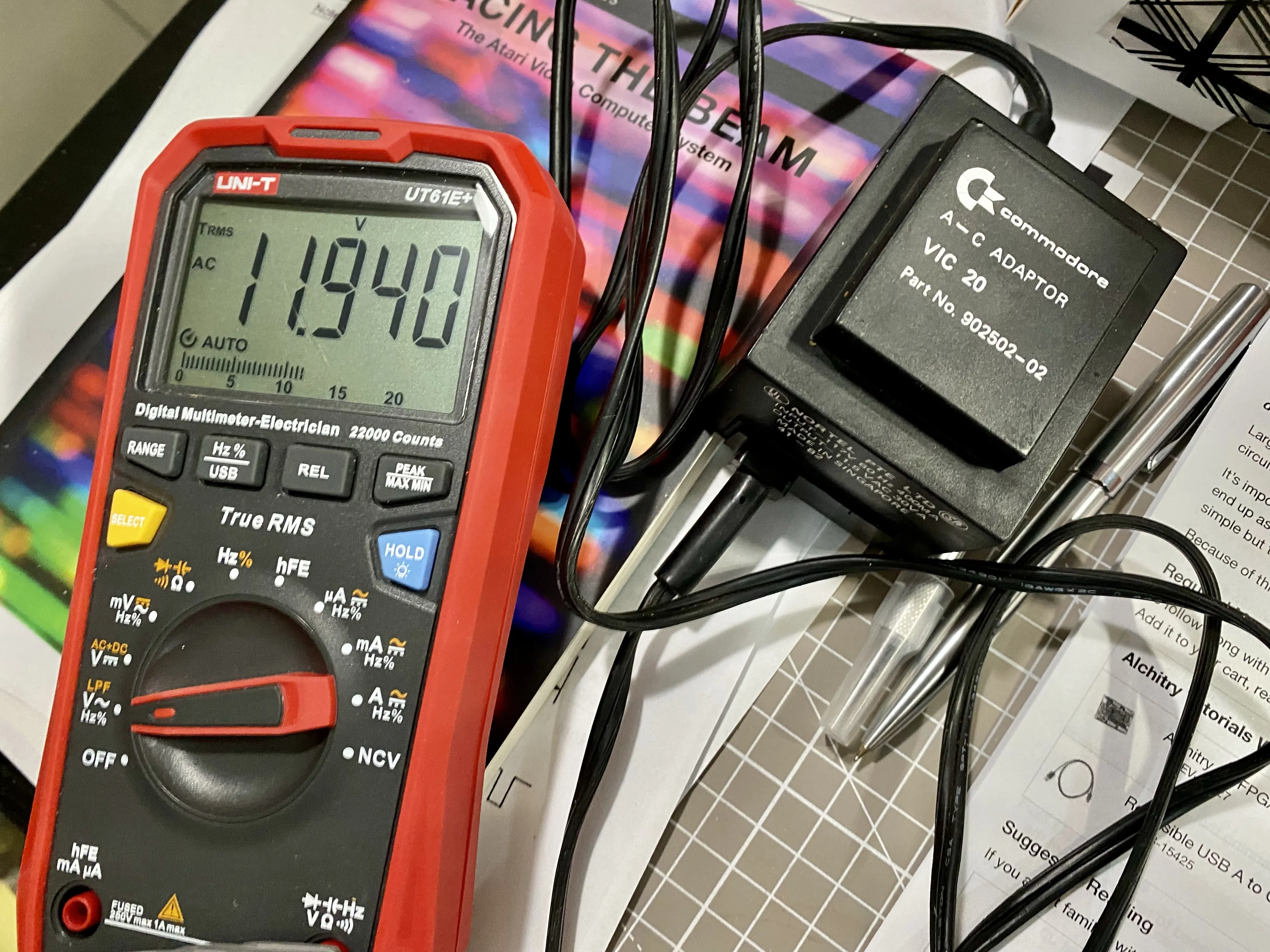

Rated at 11.5 and puts out 11.9 under no load. Not bad for 41 years old. #commodore
▸
May 18, 2022
▸
