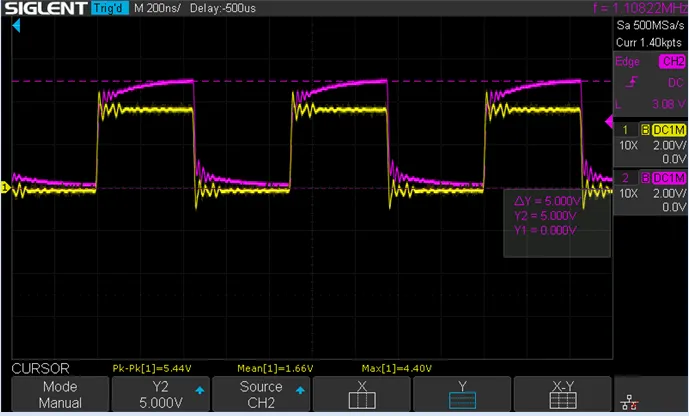

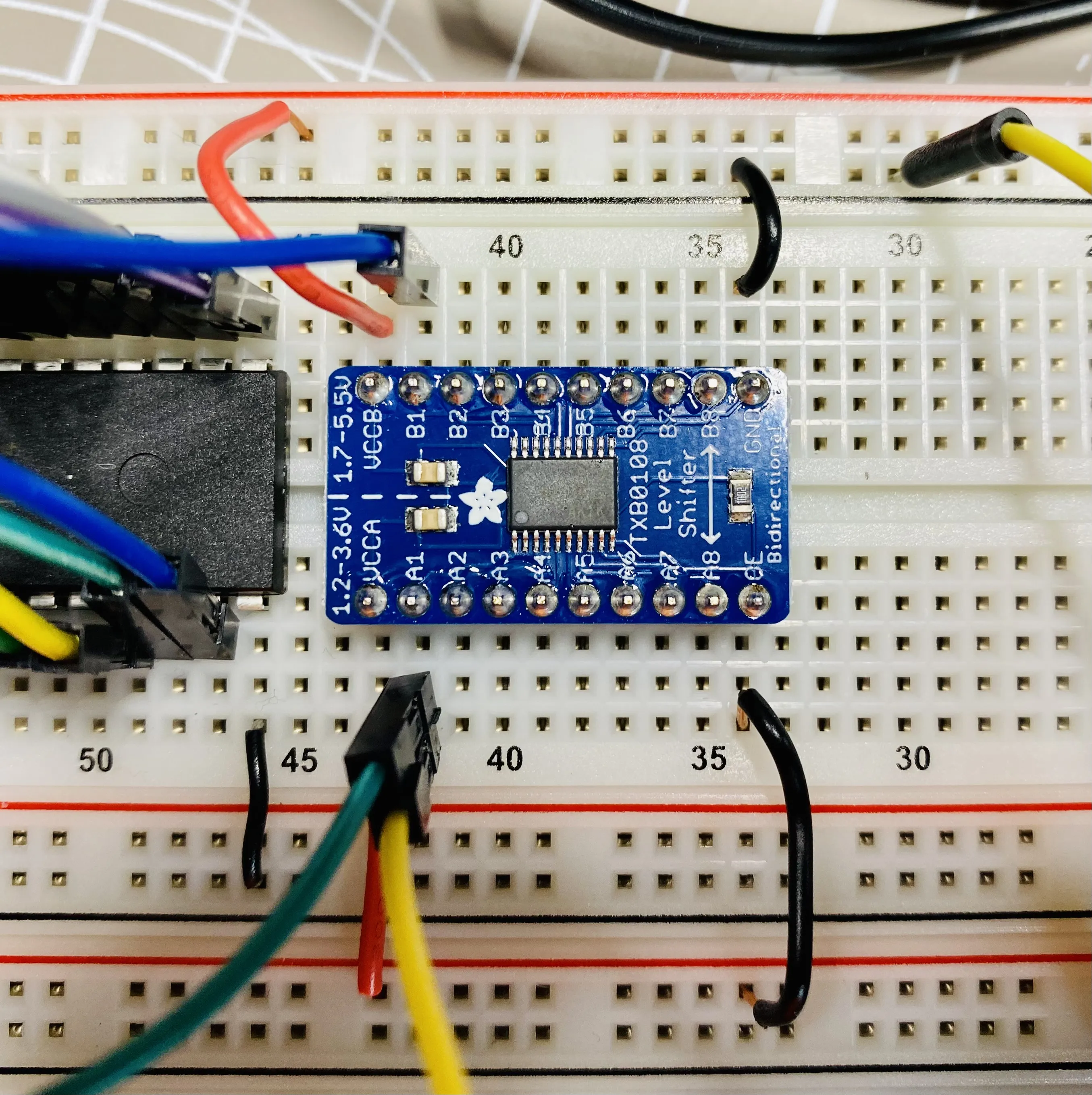

With bi directional level shifters the final board will have less chips. VIC-20 system clock replacement from the FPGA. 3v logic input is yellow, 5v output is purple. Freq is correct. Shape needs work. Ringing is mostly breadboard parasitics #commodore #vicsrevenge
