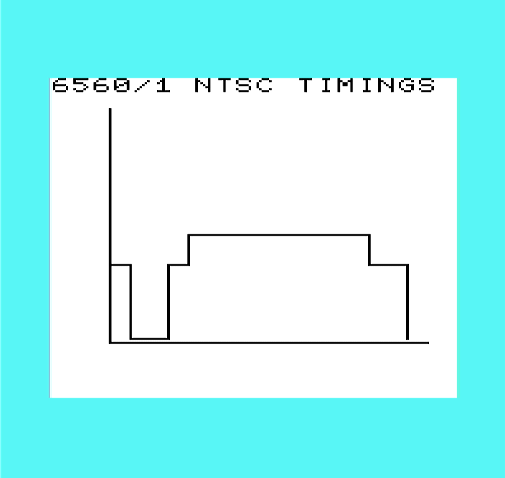

Why spend 10 seconds sketching a timing diagram for VIC-20 video output signals when you can spend 20 minutes doing it on an actual VIC-20? Happy almost Friday ;) #commodore #vicsrevenge
▸
May 19, 2022
▸
Michael Doornbos
▸
0 words
← Didn’t get a chance to post this earlier (work), but the next step in the VIC 6560/1 project is to create composite out on pins 2 and 3. This is at least starting to look something like a composite luma signal, kinda. One step at a time. Back to day job! #commodore #vicsrevenge
Well that.. DEFINITELY looks like a Composite video signal (PAL). Woot! Now on to the interlace math and the NTSC version. Urg, do we REALLY need interlacing? VGA is SO much easier... #commodore #vicsrevenge →
