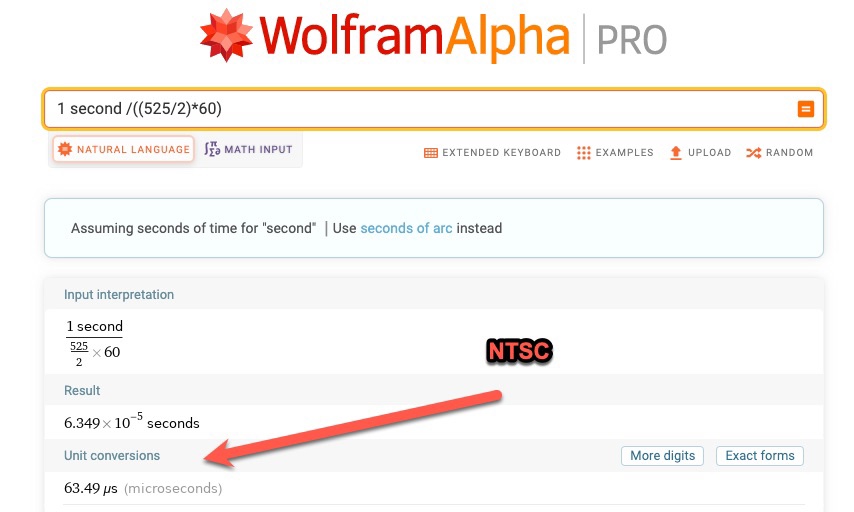

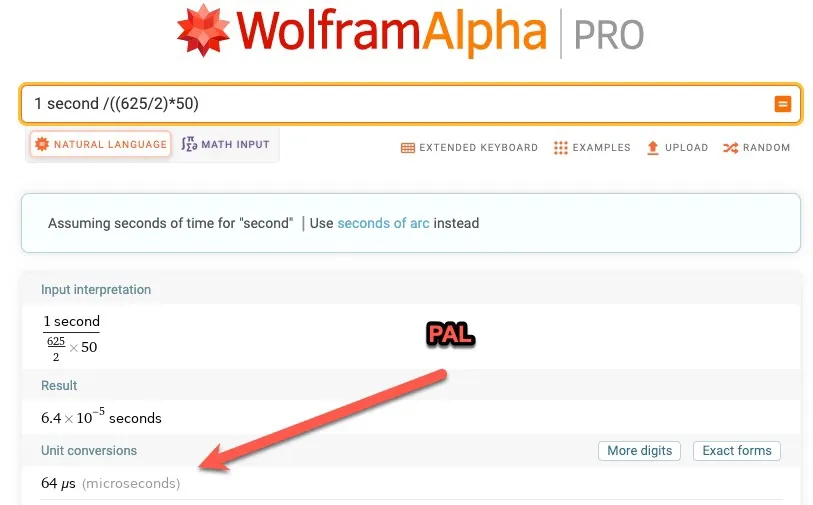

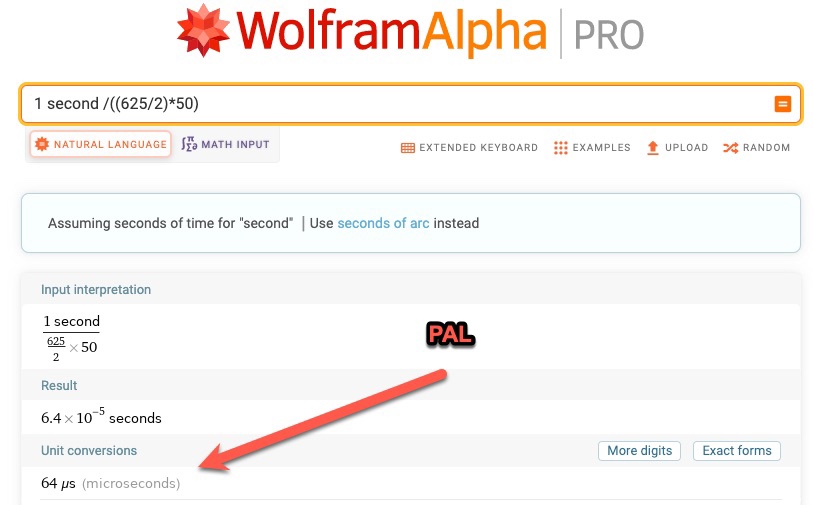

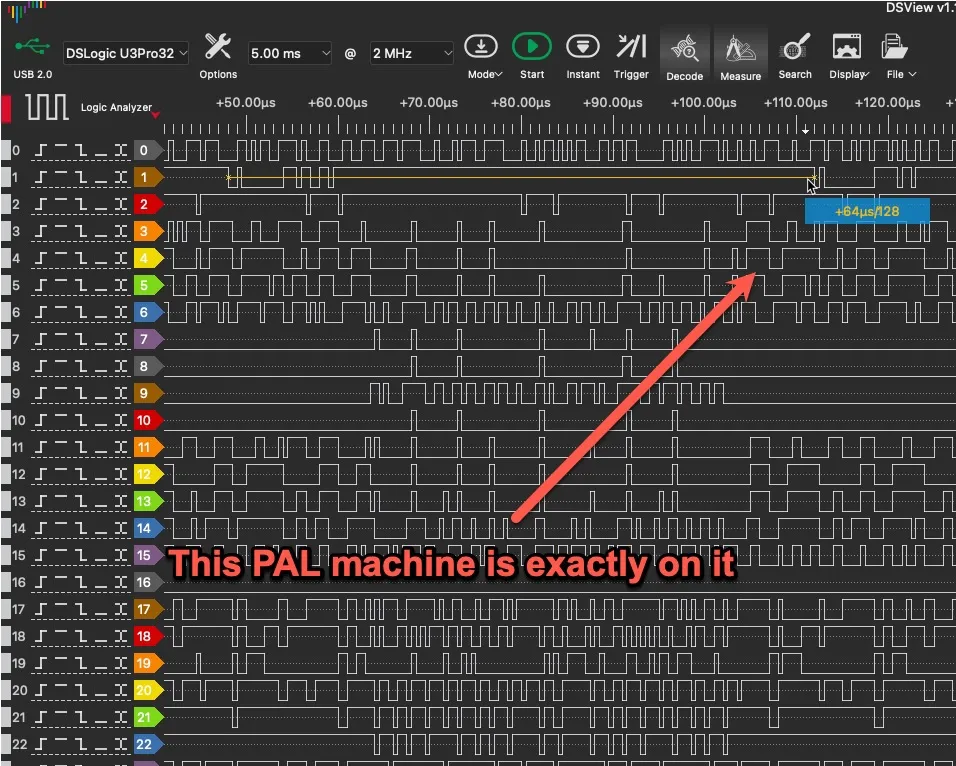

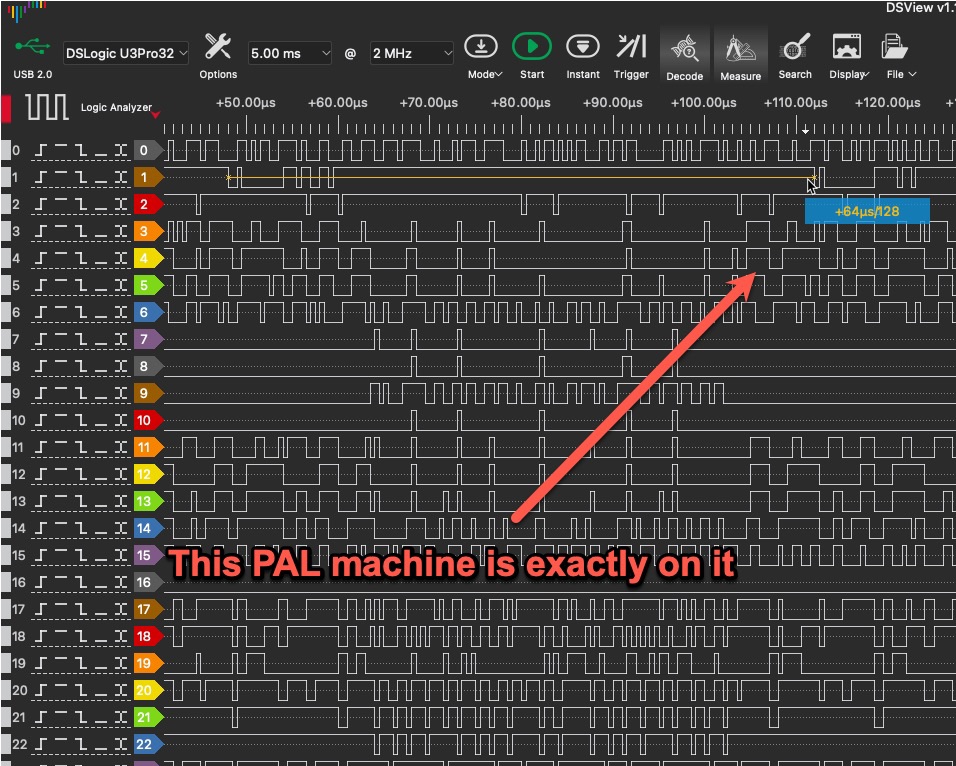

One of the very strange quirks about NTSC and PAL Composite video on VIC-20s is the half frame interlacing and the offset odd numbers you have to "count". So how long exactly is each frame SUPPOSED to be… #commodore #vicsrevenge
