Infrared Sensor Data for Hal

I’m using an infrared range sensor for the real life Hal.
The Sharp GP2Y0A02YK0F – Infrared Proximity Sensor Long Range

Hal 1.0
Hal 1.0

While testing his motions, I was noticing some pretty erratic behavior, so I decided to collect some data on the sensor values on a fixed object, while Hal was not moving.

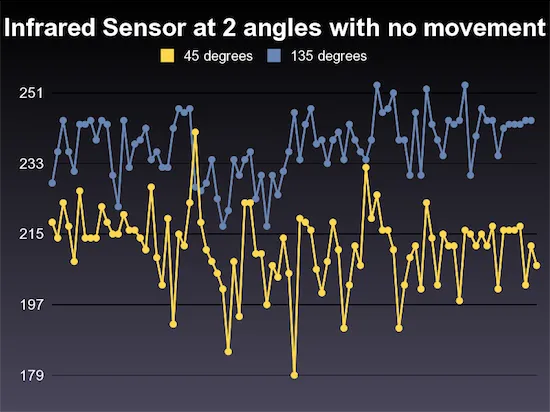

This is a graph of about a minute of Hal moving the sensor from 45 to 135 degress in front of him and then taking a reading when the motion of the sensor stops. It’s at a wall, at a slight angle so the graph lines aren’t on top of each other at about 45 centimeters away.

evadot_bot_sensor_line

My results for this sensor are not within the tolerances of being able to program him to to anything really interesting in an environment that isn’t really simple.

The good thing is that only once in this data would a “is this way further than that way” check be incorrect.  Then again, he isn’t even moving positions here.  The data is pretty erratic over a 1 minute period.

In reality, this is maybe not the correct sensor for this application.  Maybe an ultrasonic would be better.  Hal may have to have eye surgery.

Hal IS supposed to be a very inexpensive robot based solely on Arduino.  I don’t expect him to be able to do very complicated things, but I was hoping for a little better readings on a fixed object than what I’m getting.
